مكبس مختبر التسخين الأوتوماتيكي

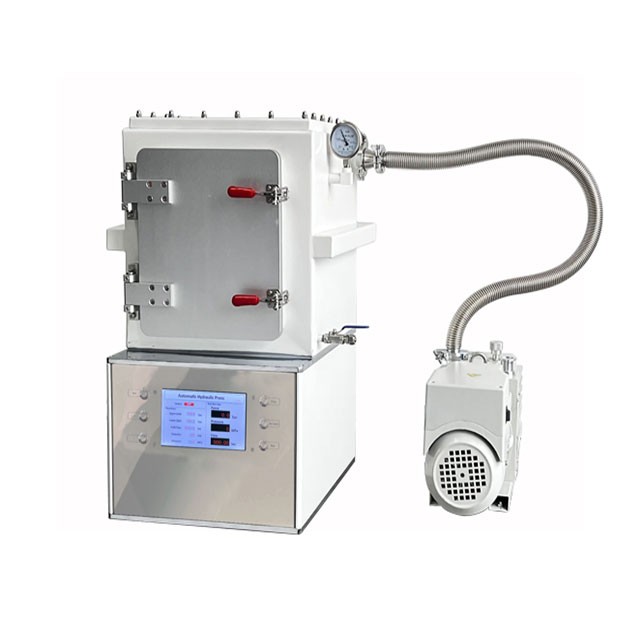

Electric Vacuum Heat Press
رقم العنصر : PPZ
السعر يتغير بناءً على specs and customizations
- Pressure Range
- 0-25T
- Heating temperature
- Up to 500℃
- Cooked tablet
- 180x180mm,200x200mm
- Vacuum box material
- SUS 304 (stainless steel)
الشحن:
اتصل بنا للحصول على تفاصيل الشحن استمتع On-time Dispatch Guarantee.
اطلب عرض السعر المخصص الخاص بك 👋
احصل على عرض أسعارك الآن! Leave a Message الحصول على الاقتباس السريع Via WhatsappIntroduction
The Electric Vacuum Heat Press is a specialized hot pressing device that operates within a vacuum environment, utilizing advanced infrared heating and precise temperature control for high-quality, robust, and reliable performance. This equipment, designed for longevity and low maintenance, offers both manual and automatic operation modes, with innovative semi-automatic models also available. It features a variety of designs, including clamshell, swing-away, and draw style presses, and utilizes air pressure for effective force application.
Applications
The Electric Vacuum Heat Press is a versatile tool used in various industries for precise heating and pressure application under controlled vacuum conditions. This technology is particularly beneficial in processes that require high purity, uniform heating, and the removal of trapped gases or liquids. The applications of this equipment span across multiple sectors, including advanced materials processing, semiconductor manufacturing, and aerospace engineering.
- Advanced Materials Processing: Used for sintering and densifying advanced ceramics and composites, ensuring uniform heating and pressure distribution to achieve high-quality, high-performance materials.
- Semiconductor Manufacturing: Essential in the fabrication of semiconductor devices where precise control of heat and vacuum conditions is crucial for the integrity of thin films and wafers.
- Aerospace Engineering: Employed in the production of aerospace components that require high strength and lightweight properties, often involving the consolidation of composite materials under vacuum.
- Research and Development: Widely used in laboratories for experimental purposes, particularly in materials science where the effects of vacuum and heat on various substances are studied.
- Medical Device Manufacturing: Used in the production of medical implants and devices where sterilization and the absence of contaminants are critical.
- Optoelectronics: Involved in the manufacturing of optical components and devices where precise temperature control and the absence of impurities are necessary.

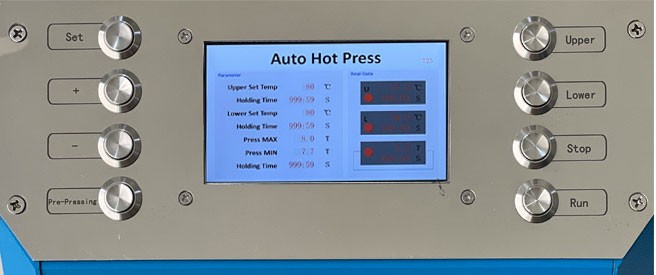

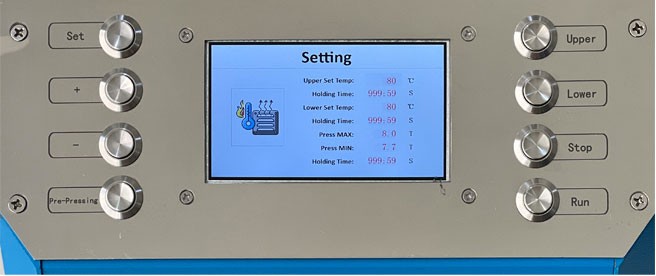

Detail & Parts
- Set:In the operation interface, press the settings button to enter the settings interface, then press the settings button to move the settings content. After moving to the mold diameter, press the settings button again to return to the operation interface. Note: When the time is set to "0", it means that the time is set to infinity
- +:In the operation interface, press the "+" key to increase the setting number
- -:In the operation interface, press the "_" key to reduce the number of settings
- Pre-Pressing:Press the pre pressing button to close the upper and lower heating plates together
- Upper:Press the "Upper Plate" button on the operation interface, and the upper plate will start heating to the set temperature. After the timing and constant temperature timer are completed, the heating will stop. Or press the "Upper Plate" button again to stop heating the upper plate. During the heating process, all setting buttons are invalid.
- Lower:Press "Lower Board" on the operation interface to stop heating after the timer ends. Or press the "Lower Plate" button again to stop heating the lower plate.
- Stop:When the device is in operation, pressing the "Stop" button will stop the motor from running and open the pressure relief valve to release the pressure
- Run:Press the "pressurization" button, and the equipment will start. When the pressure reaches the set pressure, stop pressurization and time to maintain pressure. When it is below the lower limit of pressurization, it will automatically replenish pressure. After the timing is completed, it will automatically release pressure
Features
The Electric Vacuum Heat Press is a cutting-edge solution for precise and efficient hot pressing, designed to operate within a vacuum environment. This machine is a testament to over five decades of expertise in cabin interior work, ensuring high quality and reliability. Its features are not only robust but also user-friendly, making it an ideal choice for both professional and hobbyist applications.
- Quick, Minimum-Fuss Installation: Simplifying the setup process, this feature ensures that users can start their projects without any hassle, saving time and effort.
- Designed for Longevity: Built to last, the machine is engineered for a very long life, reducing the need for frequent replacements and ensuring consistent performance over the years.
- High Quality and Robust Construction: The robust design guarantees reliability and durability, making it a dependable tool for demanding applications.
- Low Maintenance: With minimal maintenance requirements, the machine offers a cost-effective solution by reducing the time and resources needed for upkeep.
- Supplied Worldwide: Accessible globally, this feature ensures that users from different regions can benefit from the advanced capabilities of the Electric Vacuum Heat Press.
- Highly Responsive Infrared Heating: This technology provides rapid and even heating, enhancing the efficiency and quality of the pressing process.
- Class-Leading Temperature Control: Precise temperature regulation ensures optimal results, allowing for fine-tuning according to specific project requirements.
- Excellent Vacuum Press Power with Integral Vacuum Pump: The integral vacuum pump enhances the machine's functionality, providing powerful and effective vacuum press capabilities.
- Versatile Temperature Settings: With three heat settings (Low: 284℉, Medium: 320℉, High: 374℉), the Mini Easy Press machine caters to a wide range of heat transfer needs, ensuring versatility and adaptability.
- Ceramic Coated Dry Heat Plate: The ceramic coating on the sole plate ensures even heat distribution, leading to superior results in various projects.
- Compact and Portable Design: The Mini Easy Press machine is designed to be small and easy to carry, making it convenient for users who need to work in different locations or have limited workspace.
- Included Accessories: The package comes with a water spray bottle and a small canvas bag, enhancing the user experience by simplifying the ironing process and providing storage convenience.
This machine is particularly suited for craft enthusiasts, students, and housewives, enabling them to bring their creative ideas to life with precision and ease.
Principle
The Electric Vacuum Heat Press operates by applying electrical heat to materials within a vacuum environment, facilitating off-gassing and lowering the boiling point of trapped liquids. This process enhances product quality during drying and high-purity processing. The press utilizes pulse heating, where voltage and current are alternated to rapidly generate heat, optimizing the welding head's temperature.
Advantages
The Electric Vacuum Heat Press stands out as a superior choice for various applications, particularly in the realm of crafting and industrial processes. Here are some of its key advantages:
-
Highly Responsive Infrared Heating: This feature ensures rapid and even heating, which is crucial for maintaining the integrity of materials being processed. The infrared heating system is not only efficient but also conserves energy, making it an eco-friendly choice.
-
Class-Leading Temperature Control: With advanced temperature control mechanisms, the Electric Vacuum Heat Press offers precise temperature regulation. This is essential for achieving consistent results and preventing material degradation during the pressing process.
-
Excellent Vacuum Press Power: Equipped with an integral vacuum pump, this heat press provides powerful vacuum sealing capabilities. This ensures that the materials are held firmly in place, reducing the risk of air bubbles or uneven pressing.
-
Low Maintenance: Designed for longevity and reliability, this heat press requires minimal maintenance. This not only saves time but also reduces the overall cost of ownership, making it a cost-effective solution for both hobbyists and professionals.
-
Quick, Minimum-Fuss Installation: The ease of installation is another significant advantage. Users can quickly set up the machine and start their projects without any hassle, which is ideal for those who value efficiency and convenience.
-
Designed for Long Life: Built with durability in mind, the Electric Vacuum Heat Press is constructed to withstand heavy use over an extended period. This makes it a wise investment for those looking for a machine that will serve them well into the future.
-
Supplied Worldwide: Availability on a global scale ensures that users from different parts of the world can access this high-quality equipment. This international supply chain also supports a wide range of customer needs and applications.
-
Great Practicality: Despite its robust features, the machine is compact and versatile, making it suitable for a variety of heat transfer projects. Whether it's transferring designs onto T-shirts, bags, or other materials, the mini heat press offers great practicality and flexibility.
-
Honed and Refined: With over 50 years of experience in cabin interior work, the design and functionality of the Electric Vacuum Heat Press have been meticulously refined to meet the highest standards of quality and performance.
These advantages make the Electric Vacuum Heat Press an indispensable tool for anyone involved in crafting, manufacturing, or any process that requires precise and efficient heat pressing under controlled vacuum conditions.
Technical specifications
Instrument model | PPZ-600 |
---|---|
Pressure Range | 0-25T |
Pressurization process | Program pressurization-program pressure-timed pressure relief |
Pressure retention time | 1 second~0 seconds |
Heating temperature | Up to 500℃ |
Cooked tablet | 180x180mm,200x200mm |
Vacuum box material | SUS 304 (stainless steel) |
Studio size | 400x400x400mm |
Door size | 300x350mm |
Vacuum degree | -0.1MPa |
Size of the whole machine | 450x550x850(LxWxH) |
pawer supply | 220V50Hz(support110V) |

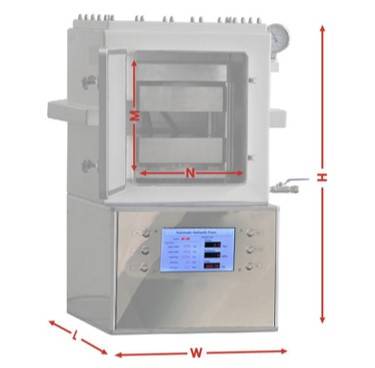

Dimensional diagram of powder tablet press |
Operation steps
1.Open the hatch and place the sample in the tablet press.
2.Set the pressure and time for pressurization.
3.Adjust the heating temperature of the upper and lower heating plates.
4.Pressurize the sample to the required pressure.
5.Close the cabin door and open the vacuum pump.
6.Extract the vacuum box to the required pressure.
7.Heat the sample to the desired temperature and maintain pressure for a period of time.
8.Open the vent valve ofthe vacuum box.
9.Open the door of the vacuum box and release the pressure.
10.Open the door of the vacuum box and release the pressure
FAQ
ما هي معمل الصحافة؟
كيف تعمل مكابس المختبرات الكهربائية؟
ما هو الغرض من المكبس الهيدروليكي في المختبر؟
ما هي مميزات استخدام المطابع الكهربائية المخبرية؟
ما هي أنواع المطابع المختبرية المختلفة؟
ما هي تطبيقات مكابس المختبرات الكهربائية؟
ما هي الاعتبارات التي يجب مراعاتها عند اختيار مطبعة المختبرات الكهربائية؟
